| Model |
Hitch Wt. |
UVW |
GVWR |
NCC |
GAWR |
Brakes |
Tires |
| 34.5 UKSBG |
2,000 |
10,739 |
14,075 |
3,336 |
6,084 |
12" x 2" |
LT235/85R16-E |
 | |||||||
| Model |
Width |
Ext. Height |
Ext. Length |
Furnace |
Awning |
Water |
Tanks |
| 34.5 UKSBG |
96" |
12' 9" |
35' 11" |
40,000 |
opt. 17' |
70 |
28/50/50 |
The listed weights are with standard equipment only, and will vary when options are added. Some models accept optional Tires and Axle upgrades, which may increase the GVWR and NCC ratings. All measurements, including weights, lengths, heights, and capacities are approximate, although every effort is made to show weights from actual unit weight sheets. Specifications are subject to change at any time and without notice.
Tanks are listed Galley / Black / Gray
* Estimated
The listed weights are with standard equipment only, and will vary when options are added. Some models accept optional Tires and Axle upgrades, which may increase the GVWR and NCC ratings. All measurements, including weights, lengths, heights, and capacities are approximate, although every effort is made to show weights from actual unit weight sheets. Specifications are subject to change at any time and without notice.
Tanks are listed Galley / Black / Gray
* Estimated

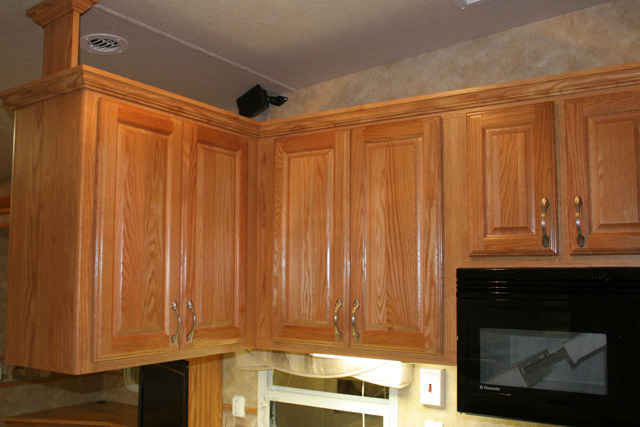

Oak 1
Note: The 329RSB, 331RSB, 333RL, 339RSB, 348SB, 355CK & 363RSB are all still presently being built with the Cathedral doors. The 317LK, 327LK, and the 360SB will not have Cathedral doors.

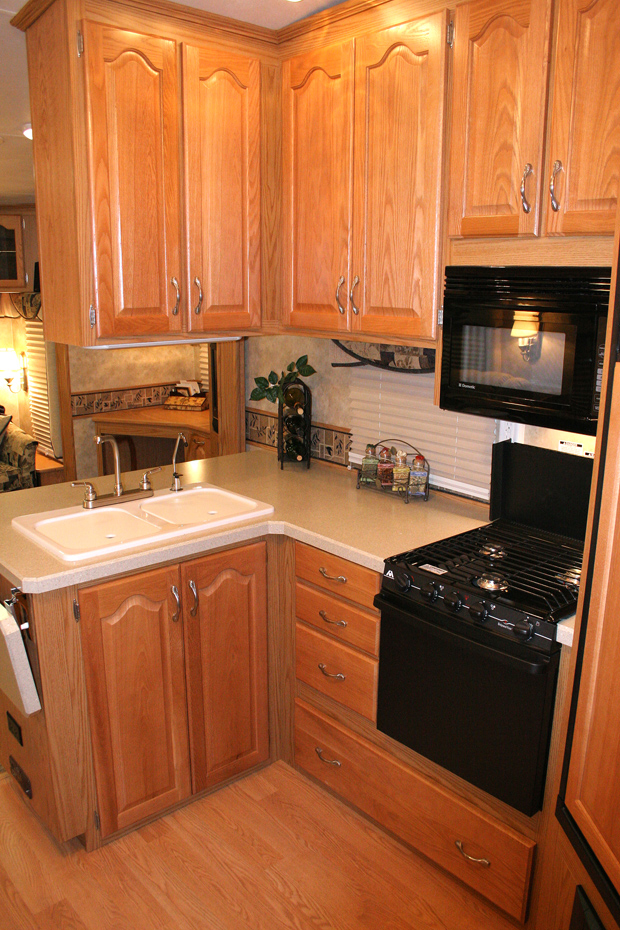

34.5 UK kitchen
Beautiful wrap around Kitchen features extraordinary counter space behind the sink, handy flip up extension, angled refrigerator, sink covers, large drawers, and plenty of overhead cabinets. Optional Spacesaver Microwave, Water Filter, and Plank Flooring shown.

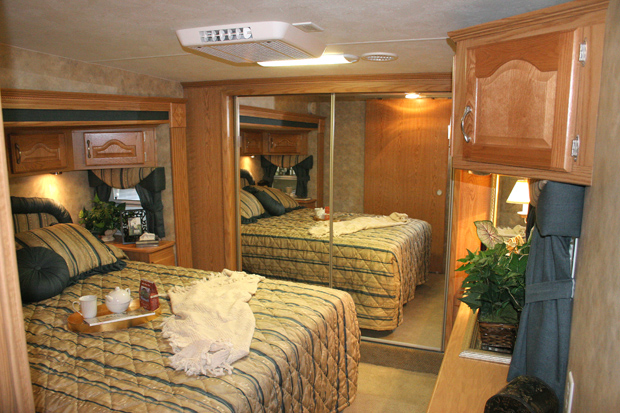

34.5 UK bedroom
This Super Bed Glide (SBG) model comes standard with a full queen-sized bed (60x80) and nightstands on each side with drawers for additional storage and extra space around the bed. An optional King Bed (75x80) is available by deleting the nightstands. Either bed is optional with a soft top ultra firm deluxe mattress, and comes complete with decorative pillows, quilted bedspread, bed pillows, and pillow shams. Overhead cabinets, reading lights, and side ventilating windows are located above and on each side of the bed (Regal Decor). The optional bedroom A/C shown above.

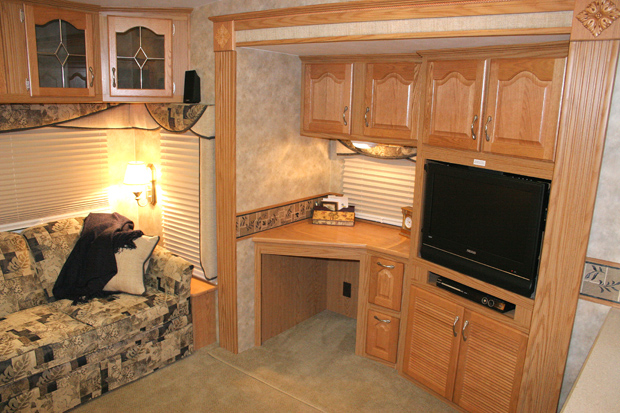

34.5 uk entertainment
Full feature entertainment/desk workstation with large desk top, file size drawers, electrical, phone, cable, satellite connections, and plenty of storage. Flat screen LCD TV (optional) on an articulating arm allows for easy access behind the TV and gives you the ability to swivel the TV to either side. Optional Fireplace may be installed in place of louvered doors under the desk (Regal Decor).
34.5 UK couch
Open…Spacious…Functional…This unique residential design has the largest H-A-B sofa available across the rear with the optional swivel glider recliners shown in the door side glide, directly across from the TV. This allows you to bring the both glides in with out moving furniture, and the additional flexibility to swap locations if desired (Regal Decor).

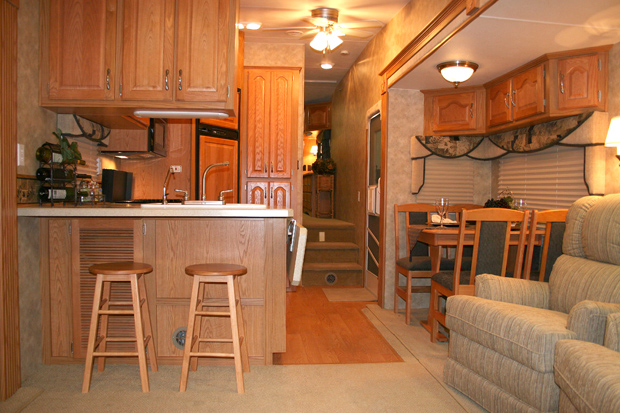

34.5 UK Living
Breakfast bar with stools provides additional seating for dining or entertaining. Full length pantry to the right of the refrigerator gives you abundant storage with pull out drawers and place for large trash can (Regal Decor).
