2004 NuWa ARCHIVES:

Below are thumbnailed images for each SnowBird SnowVilla Plus Two floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

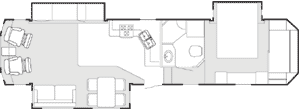

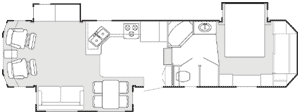

SnowVilla 35+2 RLSV SnowVilla 36+2 RL

Specifications:

Model Hitch Wt. UVW GVWR NCC GAWR Tires

35+2 RL 2480 12360 15900 3540 7000 LT235/85R16G

36+2 RL 2400 13100 17000 3900 6084 LT235/85R16E

Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks

35+2 RL 12 1/4"x3 3/8"x7000 12' 0" 38' 5" 40,000 16' 100 32/50/50

36+2 RL 12X2X7000lb. 12' 0" 39' 1" 40,000 17' 100 32/50/50

* Estimated
The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
