2004 NuWa ARCHIVES:

Below are thumbnailed images for each SnowBird SE floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

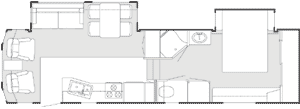

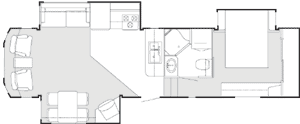

SE 32 FKTG SE 32 RLBG

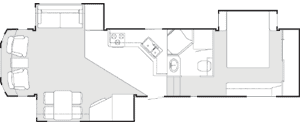

SE 34 FKTG

Specifications:

Model Hitch Wt. UVW GVWR NCC GAWR Tires

32 FK TG SE 2200 11751 14166 2415 6084 LT235/85R16E

32 RL BG SE 2000 10780 13968 2462 6084 LT235/85R16E

34 FK TG SE 2060 11894 14022 2128 6084 LT235/85R16E

Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks

32 FK TG SE 12X2X7000 12' 8" 33' 8" 40,000 STD. 18' 70 50/70

32 RL BG SE 12X2X7000 12' 8" 33' 3" 40,000 STD. 17' 70 50/50/28

34 FK TG SE 12X2X7000 12' 8" 35' 1" 40,000 STD. 17' 70 50/70

* Estimated
The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
