2004 NuWa ARCHIVES:


SnowBird LS


Below are thumbnailed images for each SnowBird LS floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

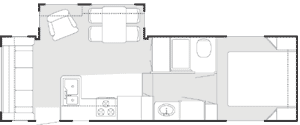

26.5 RL

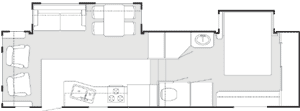

30.5 RLBG
LS 26.5 RL LS 30.5 RLBG

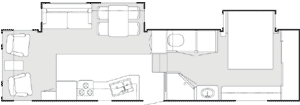

32.5 RLBG

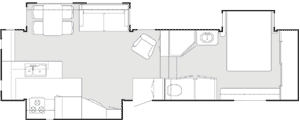

32.5 RIKTG
LS 32.5 RLBG LS 32.5 RIKTG

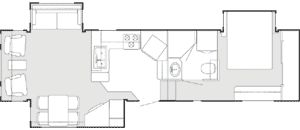

32.5 UKTG
34.5 RLTG
LS 32.5 UKTG LS 34.5 RLTG



Specifications:

Model Hitch Wt. UVW GVWR NCC GAWR Tires
26.5 RL 1420 8012 11438 3426 5080 ST225/75R15D
30.5 RL BG 1820 9465 11798 2333 5080 ST225/75R15D
32.5 RL BG 2000 10236 13800 3564 6000 LT235/85R16E
32.5 RIK TG 2100 10977 13890 2913 6000 LT235/85R16E
32.5 UK TG 2120 10560 13908 3348 6000 LT235/85R16E
34.5 RL TG 2140 11168 13995 2827 6084 LT235/85R16E

Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks
26.5 RL 12X2X5200 12' 1" 27' 11" 35,000 OPT. 14' 70 38/38/28
30.5 RL BG 12X2X5200 12' 7" 32' 1" 35,000 OPT. 16' 70 38/38/28
32.5 RL BG 12X2X6000 12' 8" 33' 8" 40,000 OPT. 18' 70 38/38/28
32.5 RIK TG 12X2X6000 12' 8" 33' 11" 40,000 OPT. 16' 70 38/38/28
32.5 UK TG 12X2X6000 12' 10" 33' 10" 40,000 OPT. 17' 70 38/38/28
34.5 RL TG 12X2X7000 12' 9" 35' 9" 40,000 OPT. 17' 70 38/38/28


* Estimated

The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
