2003 NuWa ARCHIVES:

SnowBird SnowVilla

Below are thumbnailed images for each SnowBird SnowVilla floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

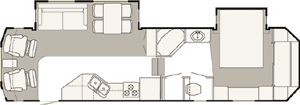

32+2 RL
32+2 RL

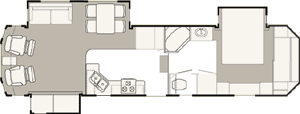

34+2 SK
34+2 SK

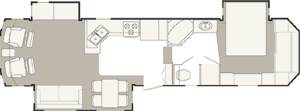

35+2 RL
35+2 RL

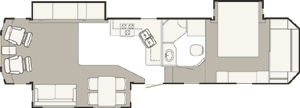

36+2 RL
36+2 RL

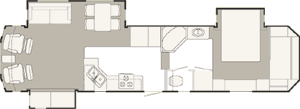

36+2 SK
36+2 SK






Model Hitch Wt. UVW GVWR NCC GAWR Tires
32+2 RL *2000 *11100 0 *3000 6000 LT235/85R16E
34+2 SK 2420 11960 15900 3940 7000 LT235/85R16G
35+2 RL 2380 12000 15900 3900 7000 LT235/85R16G
36+2 RL 2440 13220 17000 3780 6084 LT235/85R16E
36+2 SK 2120 13000 17000 4000 6084 LT235/85R16E

Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks
32+2 RL 12 X 2 X 7000 *12' 4" * 35' 6" 35,000 17' 100 GAL 70/5050
34+2 SK 12 X 2 X 7000 12' 4" 37' 3" 40,000 17' 100 GAL 32/50/50
35+2 RL 12 X 2 X 7000 12' 4" 38' 5" 40,000 16' 100 GAL 32/50/50
36+2 RL 12 X 2 X 7000 12' 2" 39' 1" 40,000 17' 100 GAL 32/50/50
36+2 SK 12 X 2 X 7000 12' 2" 39' 1" 40,000 17' 100 GAL 32/50/50


* Approximate

The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
