2003 NuWa ARCHIVES:

SnowBird SE

Below are thumbnailed images for each SnowBird SE floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

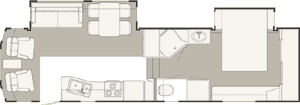

32 RLBG
32 RLBG SE

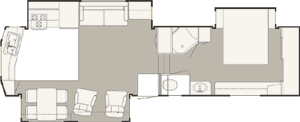

33 RKTG
33 RKTG SE

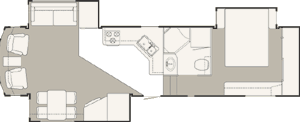

34 FKTG
34 FKTG SE






Model Hitch Wt. UVW GVWR NCC GAWR Tires
32 RL BG SE 2000 10780 13968 3188 6084 LT235/85R16E
33 RK TG SE N/A N/A 0 N/A 6084 LT235/85R16E
34 FK TG SE N/A N/A 0 N/A 6084 LT235/85R16E

Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks
32 RL BG SE 12 X 2 X 7000 12' 8" 33' 3" 40000 17' 80 GAL 50/50/28
33 RK TG SE 12 X 2 X 7000 12' 8" 34' 8" 40000 17' 80 GAL 50/50/28
34 FK TG SE 12 X 2 X 7000 12' 8" 33' 8" 40000 17' 80 GAL 50/70


* Approximate

The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
