Below are thumbnailed images for each SnowBird LS floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

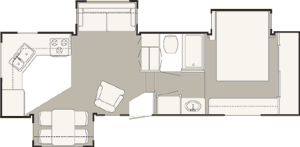

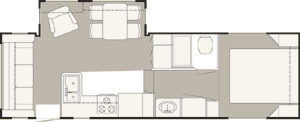

	26.5 RL		28.5 RKTG

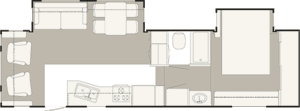

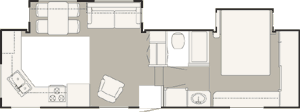

	29.5 RLBG		29.5 RKBG

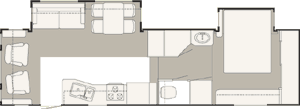

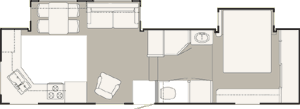

	30.5 RLBG		30.5 RKBG

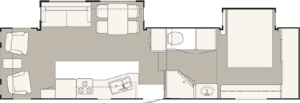

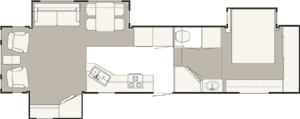

	32.5 RLBG		34.5 SKTG

Model Hitch Wt. UVW GVWR NCC GAWR Tires 26.5 RL 1560 7807 10950 3150 5080 ST225/75R15D 28.5 RK TG 2000 9345 11960 3034 5080 ST225/75R15D 29.5 RK BG 2000 9210 11960 2750 5080 ST225/75R15D 29.5 RL BG 1640 9253 11636 2382 5080 ST225/75R15D 30.5 RK BG 2000 9370 11960 2590 5080 ST225/75R15D 30.5 RL BG 1800 9451 11780 2329 5080 ST225/75R15D 32.5 RL BG 2040 10018 13836 3006 6000 LT235/85R16E 34.5 SK TG 2120 11047 13950 2903 6084 LT235/85R16E Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks 26.5 RL 12 X 2 X 7000 12' 1" 27' 11" 35,000 OPT. 14' 56 GAL 38/38/28 28.5 RK TG 12 X 2 X 7000 12' 2" 29' 10" 35,000 OPT. 17' 56 GAL 38/38/28 29.5 RK BG 12 X 2 X 7000 12' 2" 31' 3" 35,000 OPT.16' 56 GAL 38/38/28 29.5 RL BG 12 X 2 X 7000 12' 2" 31' 3" 35,000 OPT.16' 56 GAL 38/38/28 30.5 RK BG 12 X 2 X 7000 12' 3" 32' 1" 35,000 OPT. 17' 56 GAL 38/38/28 30.5 RL BG 12 X 2 X 7000 12' 3" 32' 1" 35,000 OPT.16' 56 GAL 38/38/28 32.5 RL BG 12 X 2 X 7000 12' 4" 33' 8" 40,000 OPT. 18' 56 GAL 38/38/28 34.5 SK TG 12 X 2 X 7000 12' 4" 35' 9" 40,000 OPT. 15' 56 GAL 38/38/28 * Approximate The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
