Below are thumbnailed images for each HitchHiker Champagne floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

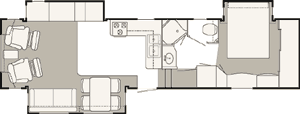

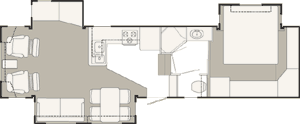

	33 LK		35 FK

Model Hitch Wt. UVW GVWR NCC GAWR Tires 33 LK 2300 12100 15600 3500 7000 LT235/85R16G 35 FK TG 2200 12080 15600 3520 7000 LT235/85R16G Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks 33 LK 12 X 2 X 7000 12' 10" 35' 0" 35,000 15' 100 GAL 50/70 35 FK TG 12 X 2 X 7000 12' 3" 36' 10" 35,000 17' 100 GAL 50/70 * Approximate The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
