Below are thumbnailed images for each HitchHiker Champagne floor plan, followed by a table of specifications for each plan. For a larger view of an individual floor plan, simply click on it to enlarge...

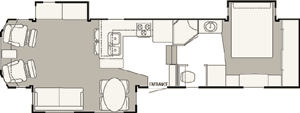

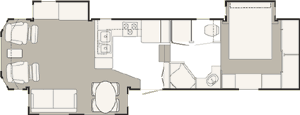

	33 LKTG		35 LKTG

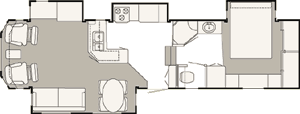

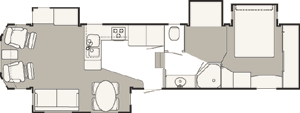

	35 CKQG		37 Bedroom Suite

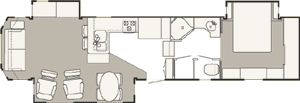

	38 LKTG

Model Hitch Wt. UVW GVWR NCC GAWR Tires 33 LK TG 2080 12780 15900 3120 7000 LT235/85R16G 35 CK QG 2400 13260 16400 3140 7000 LT235/85R16G 35 LK TG 2260 12960 16100 3140 7000 LT235/85R16G 37 BED SUITE 2520 13800 17800 4000 6084 LT235/85R16E 38 LK TG 2760 14380 18400 4020 6084 LT235/85R16E Model Brakes Ext. Height Ext. Length Furnace Awning Water Tanks 33 LK TG 12 1/4 X 3 3/8 X 7000 12' 6" 35' 8" 40,000 16' 100 GAL 50/50/50 35 CK QG 12 1/4 X 3 3/8 X 7000 12' 6" 36' 5" 35,000 17' 100 GAL 50/50/50 35 LK TG 12 1/4 X 3 3/8 X 7000 12' 5" 36' 6" 40,000 17' 100 GAL 50/50/50 37 BED SUITE 12 X2 X 7000 12' 4" 38' 8" 40,000 17' 100 GAL 50/50/50 38 LK TG 12 X 2 X 7000 12' 6" 39' 3" 40,000 18' 100 GAL 50/50/50 * Approximate The listed weights are with standard equipment only, and will vary when options are added. All measurements, including weights, lengths, heights, and capacities are approximate. Specifications are subject to change at any time and without notice. Please see the Terms of Usage Agreement.
